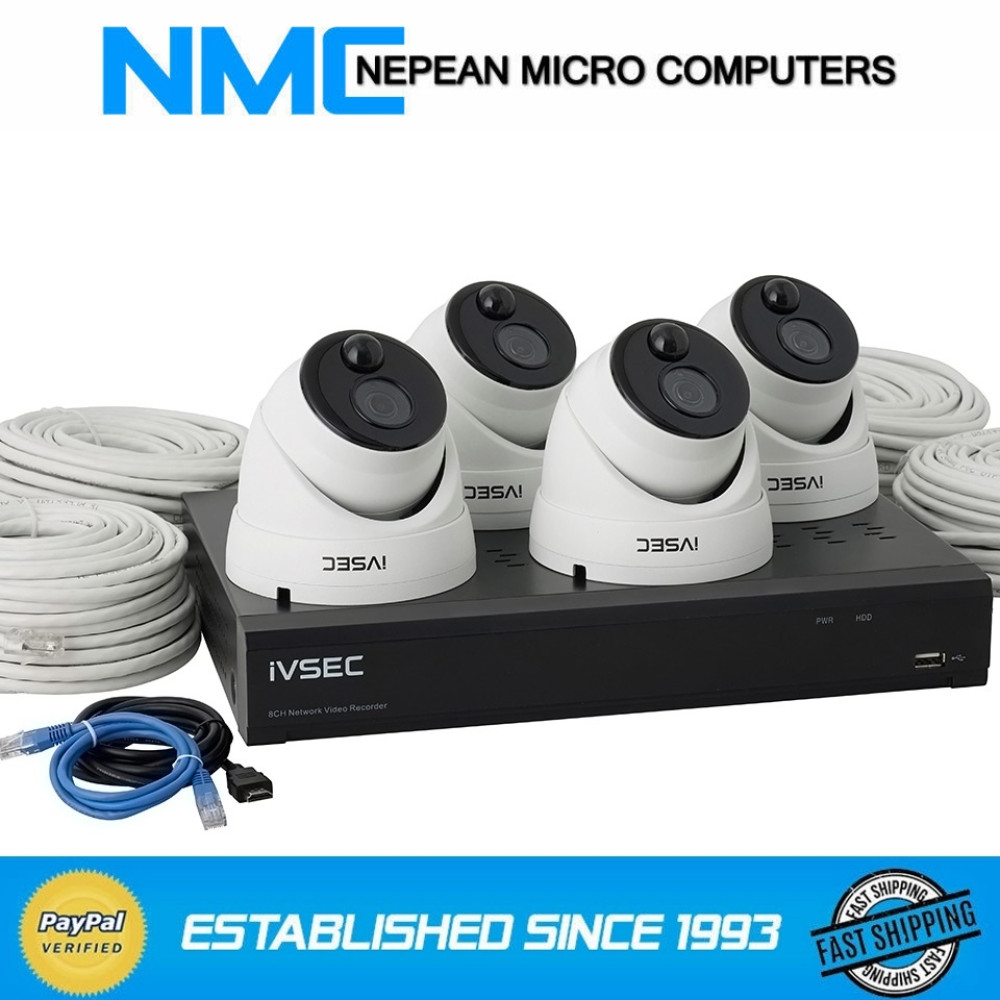

IVSEC 5MP CCTV System with 4 x 5MP IP Dome Cameras - IVK-28E
Product Description
IVSEC NR308XC
The IVSEC NR308XC is a network video recorder (NVR) capable of supporting up to 8 IP security cameras and of recording at up to 8 megapixel resolution.
It’s easy to install and has an intuitive user interface. When used with IVSEC X series cameras, installation is plug and play.
This NVR is fully ONVIF 2.6 compatible and can also support other brands of IP cameras.
This NVR comes with 2 year return to manufacturers warranty
IVSEC NR308XC Specification's
Maximum Channels | 8 |
| Maximum Video Resolution (Megapixels) | 12MP |
| Examples of Channels at a resolution with FPS | 128 Mbps |
| Video Compression | H.264, H.265 |
| Video Output Resolution | 4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display | 1, 4, 6, 8, 9 |
| Search Method | Continuous, Scheduling, Event Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Total Storage Potential (TB) | 16 |
| HDD Bays, Size | Bays x 1, Up to 16TB per HDD |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols | TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code |
| Language | English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, Etc. |
| Audio Streaming | Out |
| Power Over Ethernet Switch Ports | 8 up to 802.3at(30w) |
| Power Over Ethernet | Yes |
| Power Supply | DC48V/2A |
| Power Consumption | 8W （Without HDD） |
| Connectors | HDD: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, USB3 Female x 1, Gigabit Ethernet: RJ-45 Port x 1 and 8 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and 1 out, Audio out, Power Jack input, On off switch |
| Operating Environment | 5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH |
| In The Box | Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply. |
| Warranty | 24 months parts |
| Dimensions | 300 x 227 x 53 mm |
| Weight (kg) | 1 kg |
IVSEC NC110XC
The IVSEC NC110XC IP security camera offers a 5 Megapixel resolution combined with a 2.8 mm wide-angle lens for an impressive 99 degree view.
It features a built-in PIR sensor which can be used to trigger recording.
Most cameras can only record on movement detection, but this creates a lot of unnecessary recording with moving branches or cars’ headlights ... With this IVSEC security camera, you have the choice of using either motion detection or the built-in PIR sensor to trigger recording. This can save a huge amount of storage and, by not having to sift through unnecessary recordings, it will make it faster to find the events which really matter.
The built-in infrared illumination enables night vision at up to 30 metres, and the camera has a SD Card slot.
When used together with the IVSEC X series recorders, this camera will be automatically detected with Plug & Play.
Reduce installation labour and parts required by using one cable for both data and electricity with PoE (Power over Ethernet).
The IVSEC NC110XC features an IP66 water resistant dome which means this video surveillance camera can be used both indoors and outdoors.
The NC110XC features H.265 video compression technology and is fully compatible with the ONVIF standard.
Main features: Dome IP Camera, 5MP, 2.8 mm lens, Audio recording, PoE, IP66, 30m IR, ICR, SD Card slot 3 year warranty.
IVSEC NC110XC Specification's Camera Type | Dome |
| Image Sensor | 1/2.7″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) | 5 |
| Maximum Video Resolution | 2592 x 1944 |
| Lens | 2.8 mm (H.FOV: 99°) |
| Lens Type | Fixed |
| Maximum Night IR Distance (M) | 30 |
| Image clarity | 3.5 |
| Connectors | RJ-45 |
| Video Compression | H.265, H.264 |
| ONVIF (depends on firmware version) | ONVIF( Profile S/G/T) |
| Operating Environment | -30～+55°C/less than ≤ 95% RH |
| Dimensions | 100×100 mm |
| Weight (Net) | 0.4 |
| Accessories | IV2422X, IV2433X, IV2444X, IV2455X |
| Power Supply | Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption | <7W |
| Connectors (web) | RJ-45 , DC Power Input |
| Outdoor Use | Yes |
| IP Rating | IP66 |
| Vandal Resistant | Yes |
| Frame Rate at Resolution | 20 |
| Day/Night Mode | Auto |
| Image Enhancement | Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue |
| Edge Recording slot microSD/SDHC Card | Yes |
| Video Compression | H.265, H.264 (3 streams) |
| Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Power Over Ethernet | Yes |
| Ethernet | Ethernet (10/100 Base-T) |
| UPNP | Yes |
| In The Box | Free Software available from FAQ, Printed quick user guide, installation template, mounting screws and plugs |
| Warranty | 3 Year Warranty |
| Weight (Packaged) | 0.55 |
